Speciation by HPLC-ICP-MS

High Throughput, High-Precision Spark-OES Spectrometer - Transforming the Instrumental analysis

    Speciation by HPLC-ICP-MS (Liquid Chromatography-Inductively Coupled Plasma Mass Spectrometry) is an advanced analytical technique that combines the separation capabilities of high-performance liquid chromatography (HPLC) or ion chromatography (IC) with the sensitive detection power of inductively coupled plasma mass spectrometry (ICP-MS). This method is widely used for the analysis of different chemical species (e.g., ions, molecules, complexes) of elements in a sample.

HPLC-ICP-MS: Transformed provision for Speciation of chemical species (e.g., ions, molecules, complexes) of elements in a sample

In LC-ICP-MS, the sample undergoes liquid chromatography to separate different species of an element (for example, different oxidation states or chemical forms), and then the separated species are introduced into the ICP-MS for detection and quantification. This method is highly effective for speciation studies, where the goal is to identify and measure the different forms of a particular element in a complex matrix.

Technical info

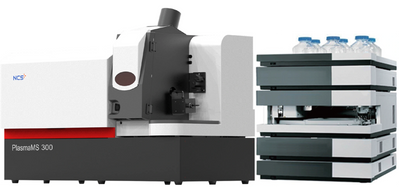

Modules of Hyphen HPLC-ICP-MS

Modules of Hyphen HPLC-ICP-MS

Modules of Hyphen HPLC-ICP-MS

  • Chromatography: Typically, a form of liquid chromatography, like high-performance liquid chromatography (HPLC) or ion chromatography (IC), is used to separate different species before the sample enters the ICP-MS. This helps isolate the species of interest in a complex sample.


  • ICP Ionization: The separated species are then introduced into the ICP, where they are ionized by the high temperature of the plasma.


  • Mass Spectrometry: After ionization, the ions are transferred to the mass spectrometer, where their individual m/z ratios are measured. Specific ion signals corresponding to different species of the element can be detected and quantified.


  • Detection and Quantification: Data from the ICP-MS can be used to quantify the amount of each species present in the sample.

Send us Sample

Applications

Modules of Hyphen HPLC-ICP-MS

Modules of Hyphen HPLC-ICP-MS

Applications of Speciation by ICP-MS:

  • Environmental analysis: Identifying and quantifying different species of elements like mercury, arsenic, selenium, or chromium, which can have significantly different toxicities depending on their chemical form.
  • Food and beverage industry: Assessing the speciation of metals in food, such as inorganic and organic forms of selenium or arsenic.
  • Pharmaceuticals and biomedical studies: Determining the speciation of metals in biological samples, as different metal species can have vastly different biological effects.
  • Geochemistry: Studying the distribution and behavior of elements in different geological materials.


  • Speciation by ICP-MS offers high sensitivity and precision, making it a valuable tool for studying the chemical behavior of elements in various environmental, biological, and industrial contexts.

Pay Now

ICP-MS Specifications

Modules of Hyphen HPLC-ICP-MS

ICP-MS Specifications

  • Spectral range: Full spectrum from 2 to 255 amu, ideal for major and trace element analysis in environmental analysis, geology and materials science.
  • Power: 1000-1600 W, flexibly adjustable for different sample requirements and material types.
  • Detectors: Quadrupole mass spectrometer, known for precise elemental analysis and high sensitivity.
    Resolution: 0.8 amu, enables the exact differentiation of elements with similar atomic masses.
  • Sample acquisition: Automated, high-throughput system optimized for efficient analysis in laboratories and industrial applications.
  • Analysis time: Fast and efficient, typically completed in less than five minutes.
  • Calibration: Fully automated calibration routines and maintenance features that minimize user effort and maximize uptime.
  • Software: Intuitive user interface with advanced analysis and reporting features, specifically designed for industrial standards and quality control.

Pay Now
