NC Spectra (NCS-Americas) Your American partner for instrumental analysis
Transformed provisions for elemental, molecular and isotopic analysis.
EXPLORE OUR Transformed SPECTROMETRY SOLUTIONS
LA-ICP-MS Laser Ablation / LIBS
LA-ICP-MS Laser Ablation / LIBS
Coupled with the Laser Ablation Atomizer hyphenated to ICP-MS becomes LA-ICPMS which can achieve solid-state direct sampling, reducing matrix interferences etc. The overall performance of the instrument remains stable, and all elements demonstrate excellent linearity in calibration build and routine sample analysis. The results of content accuracy comparison strongly confirm the outstanding accuracy. The potential of this hyphenated technology in the analysis of trace element distribution on material surfaces, whether in Semiconductor or others proves it's effectiveness as a powerful detection technique surface analysis and for ore mineral composition.
HPLC-ICP-MS Speciation
LA-ICP-MS Laser Ablation / LIBS
Speciation by HPLC-ICP-MS (Liquid Chromatography-Inductively Coupled Plasma Mass Spectrometry) is an advanced analytical technique that combines the separation capabilities of High Performance Liquid Chromatography (HPLC) with the sensitive detection power of inductively coupled plasma mass spectrometry (ICP-MS). This method is widely used for the analysis of different chemical species (e.g., ions, molecules, complexes) of elements in a sample.
HPLC-ICP-MS is a powerful tool for speciation analysis, combining the separation capabilities of liquid chromatography with the sensitivity of inductively coupled plasma mass spectrometry. This method provides invaluable insights into the different forms of elements in a sample, which is critical for understanding their environmental, biological, and toxicological properties.
ICP-MS
ONH - Oxygen, Nitrogen and Hydrogen determinator
Our ICP-MS (Inductively Coupled Plasma Mass Spectrometer) is used in numerous industries labs of metallurgy, pharma, environmental, geochemical, and clinical research. It is an integrated elemental analysis system that can detect most elements of the periodic table in the milligram to nanogram per liter range.
- Mass range: 2 to 255 amu
- Resolution 0.8 amu
- Maintenance free dual turbomolecular pump powered ICP-MS
ONH - Oxygen, Nitrogen and Hydrogen determinator
CS - carbon and sulfur determinator (High frequency Induction furnace)
ONH - Oxygen, Nitrogen and Hydrogen determinator
An oxygen, nitrogen and hydrogen analyzer for determining the content of these elements in a variety of steel-related products. Ideal for quality control and process control in the metal industry.
- Oxygen, nitrogen and hydrogen analyzer
- Range: O: 0.1 ppm to 2 %, N: 0.1 ppm to 2 %, H: 0.1 ppm to 5000 ppm (at a sample weight of 1000mg)
- Low detection limits and high precision
ICP-OES (dual view)
CS - carbon and sulfur determinator (High frequency Induction furnace)
CS - carbon and sulfur determinator (High frequency Induction furnace)
The ICP 3000, an inductively coupled plasma optical emission spectrometer (ICP-OES) with Dual View technology, enables comprehensive elemental analysis in various industries. With the Dual View function, the ICP 3000 offers improved sensitivity and analytical precision, making it particularly valuable for applications in metallurgy, environmental analysis and the chemical industry. This spectrometer features user-friendly software and is optimized for long-term use in demanding laboratory environments.
CS - carbon and sulfur determinator (High frequency Induction furnace)
CS - carbon and sulfur determinator (High frequency Induction furnace)
CS - carbon and sulfur determinator (High frequency Induction furnace)

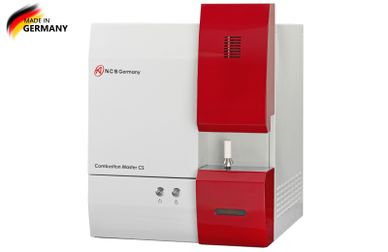

A carbon and sulfur analyzer for precise and reliable measurements in a wide range of inorganic samples. Ideal for the metals industry and mining.
- Carbon-sulfur analyzer
- Range: C: 0.1 ppm to 6% S: 0.1 ppm to 30% (with a sample weight of 500 mg)
- Analysis time: 60 seconds
- Low detection limits and high precision
Energy Dispersive X-ray fluorescence spectrometer (EDXRF)
The NX-300FA is a state-of-the-art energy dispersive X-ray fluorescence spectrometer (EDXRF) for precise and fast elemental analysis in various materials. This instrument offers high sensitivity and accuracy and is therefore ideal for quality control, material testing and metal analysis.
It offers high sensitivity and precision, ideal for quality control and material testing.
- State-of-the-art X-ray fluorescence spectrometer
- Spectral range: 130-800 nm
- Power: 3 kW
High sensitivity and accuracy
Wavelength Dispersive X-ray fluorescence spectrometer (WD-XRF)
A sequential wavelength dispersive X-ray fluorescence spectrometer for elemental analysis in geology, materials science and environmental samples. This instrument provides the exceptionally high resolution and sensitivity required for analyzing trace elements in complex samples with precise determination of oxygen, nitrogen and carbon as well as the quantification of other elements and is ideal for applications in metal processing, research and industry.
- Sequential wavelength dispersive
- X-ray fluorescence spectrometer
- Autosampler
- Spectral range: 0.01-50 keV
- High resolution and sensitivity
Spark OES
ONH - Oxygen, Nitrogen and Hydrogen determinator
The Spark-OES optical emission spectrometer, a modern digital high energy high throughput source analyzer, uses a high-resolution linear detector for comprehensive spectral detection. The device’s variety of spectral lines offers a wide selection and provides excellent results.
- Full spectrum spark emission spectrometer
- Spectral range: 160-800 nm
- Analysis of multiple elements
- Heated optical system
ONH - Oxygen, Nitrogen and Hydrogen determinator
ONH - Oxygen, Nitrogen and Hydrogen determinator
ONH - Oxygen, Nitrogen and Hydrogen determinator
The ONH 55 is an analyzer for the simultaneous determination of oxygen (O), nitrogen (N) and hydrogen (H) in metals and other solid materials. This analyzer is crucial for quality control in the metals industry as it enables fast and accurate gas analysis. With its high sensitivity and accuracy, the ONH 55 is ideal for analyzing alloys and other materials where these elements are critical.
Oxygen, nitrogen and hydrogen analyzer
- Range: O: 0.1 ppm to 20 %, N: 0.1 ppm to 50 %, H: 0.1 ppm to 5000 ppm
- Analysis time: 120 seconds
- Low detection limits and high precision
ICP-OES
ONH - Oxygen, Nitrogen and Hydrogen determinator
Spark-OES
The ICP series 2000 is a full spectrum inductively coupled plasma emission spectrometer (ICP-OES) designed for fast and accurate analysis of organic and inorganic samples. With its high sensitivity, low detection limits and excellent precision, the ICP series 2000 is ideal for applications in environmental analysis, geochemistry, food safety and materials research. This analyzer enables the simultaneous analysis of a wide range of elements, making it an indispensable tool for laboratories that require reliable data and efficient analytical procedures.
Spark-OES
ONH - Oxygen, Nitrogen and Hydrogen determinator
Spark-OES

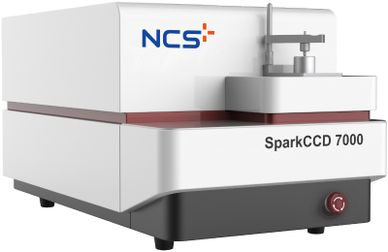

A high-resolution spark emission spectrometer for precise analysis of the chemical composition of metals. It offers excellent resolution and sensitivity required for detailed material analysis and elemental analysis. Ideal for applications in metallurgy, materials science and quality control, it supports fast and accurate analysis to optimize production processes.
- High-resolution spark emission spectrometer
- Spectral range: 160-800 nm
- Automatic sample acquisition
- Fast analysis times.
